Garage Door Winding Bar

The garage door winding bar is a special high-strength tool used in conjunction with the torsion spring cone sleeve of the sliding garage door. Insert the winding bar into the torsion spring winding cone hole to apply and release the torsion force, completing the replacement of the spring, adjustment of the torsion force. It is only applicable to the torsion spring system. The extension spring system does not require the winding bar.

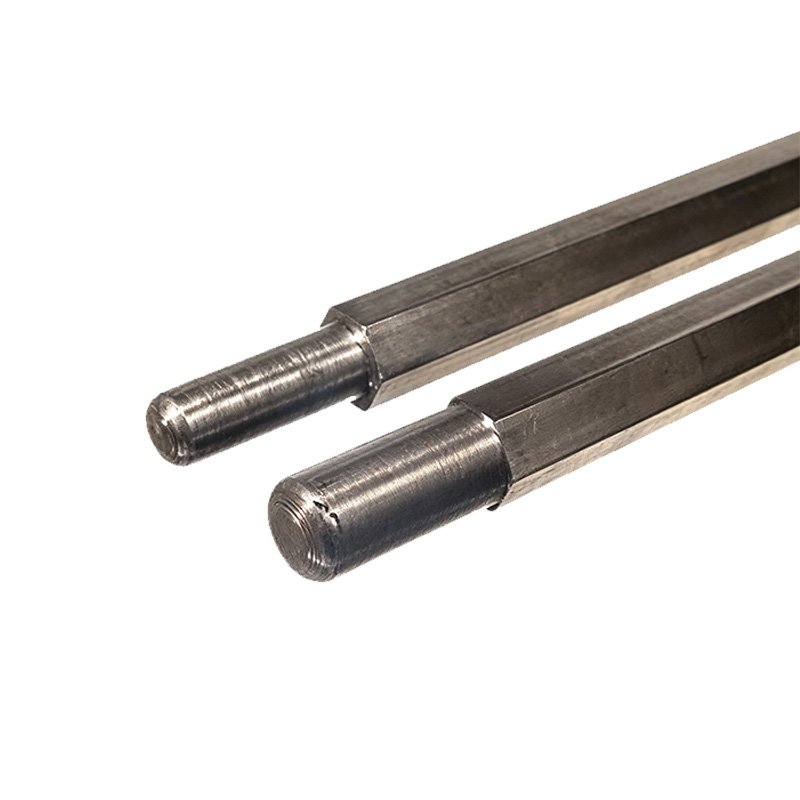

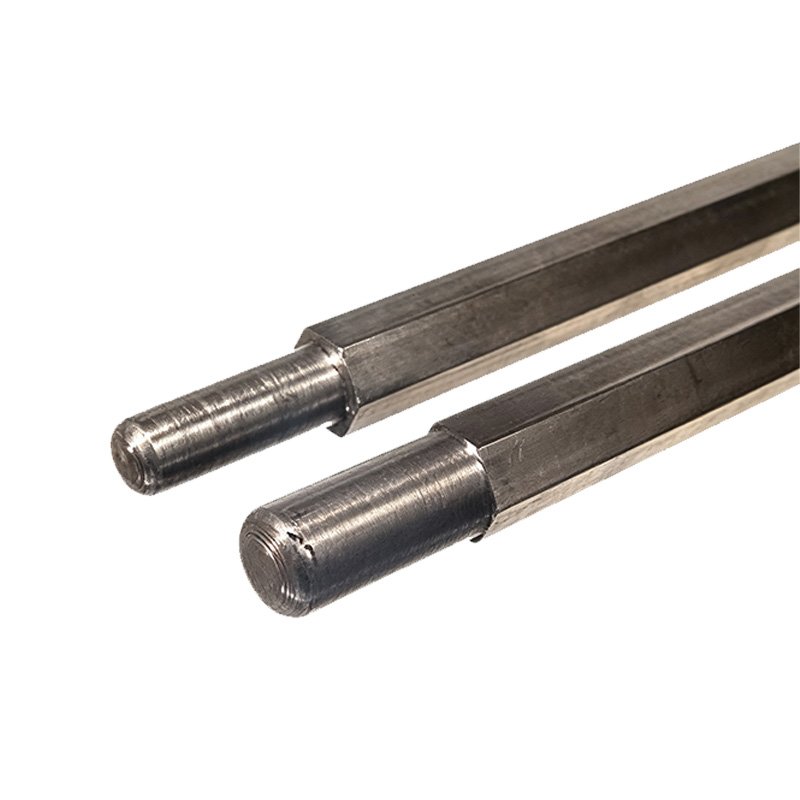

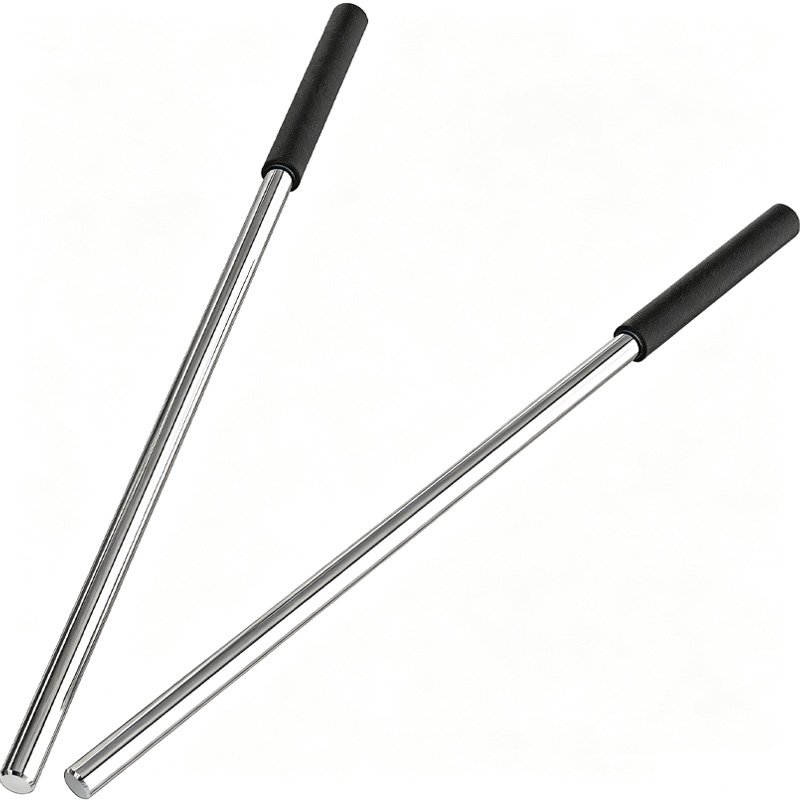

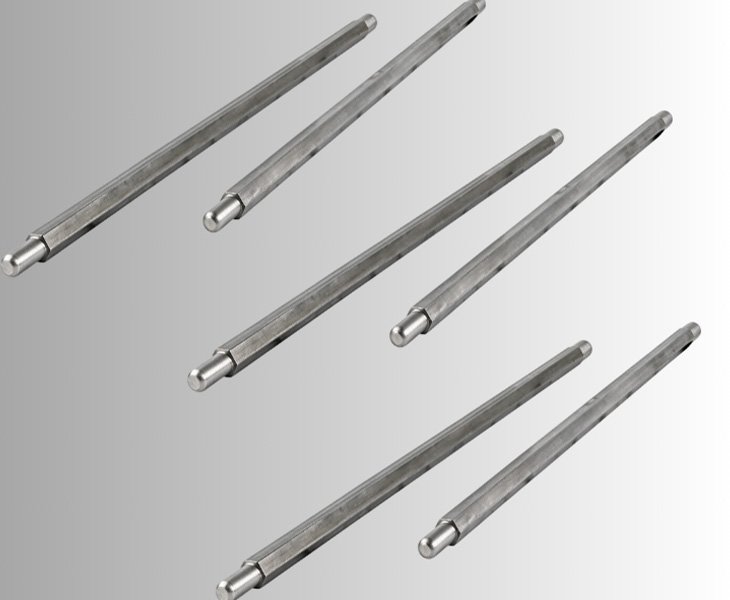

The round-end version (commonly 18″) with rounded tips is the standard choice when you handle most residential torsion spring work. The hexagonal version offers a stronger grip and better force transfer, making it especially suitable for both residential and industrial garage doors where higher torque is required.

The winding bar and the spring cones socket must be closely fitted. If you pick a bar diameter is too small, it will shake and slip during operation; if the bar diameter is too large, it won’t fit into the socket. The incorrect size was the main safety hazard that led to the winding bar popping out and causing injuries to the on-site person. Always select a bar that matches your garage-door cone socket diameter

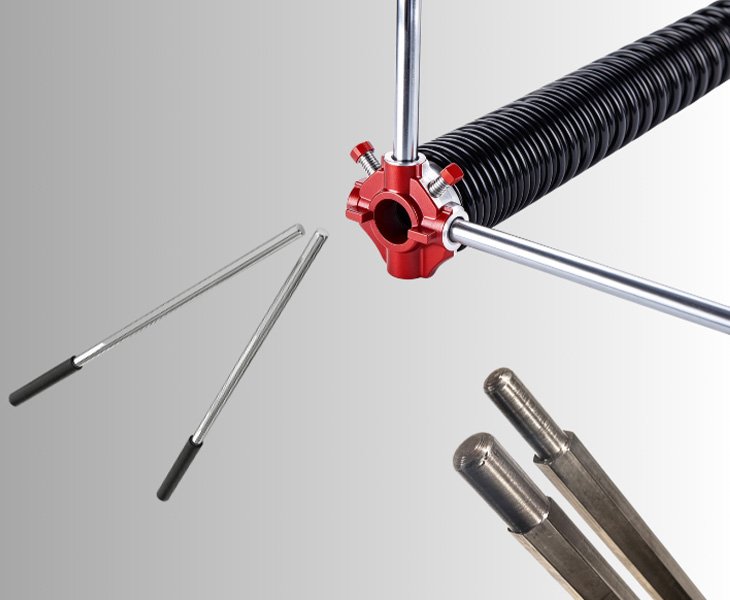

The spring cones has two misaligned 90° holes. The two winding bars operate alternately: one is subjected to force and pushed up, while the other moves to the next hole and continues to apply force. Working with only one bar puts you at high risk of slipping.

It is not universal. Your choice depends on the diameter of the garage door cone hole, the weight of the door, and the spring torque. A 1/2″ winding bar is suitable for most American residential doors; for heavy-duty commercial doors, a 5/8″ large-diameter winding bar should be selected. Before purchasing, confirm the parameters of the spring cone first.
