Your Reliable Garage Door Torsion Spring Supplier
KOP DOOR supplies complete supporting solutions with a full line of professional garage door torsion springs. Our spring series uses high-tensile steel wire, precision coiling, and strict quality control to match standard and non-standard garage door requirements. Our torsion spring offers a long service life (10,000-50,000 cycles) under repeated cycling, features left/right hand wound options, and is available in a variety of wire gauges, inner diameters, and lengths.
We are committed to building reliable partnerships—wholesalers, distributors, door manufacturers, and engineering contractors—offering stable supply, bulk pricing, and technical support that consistent with your production schedules and project specifications.

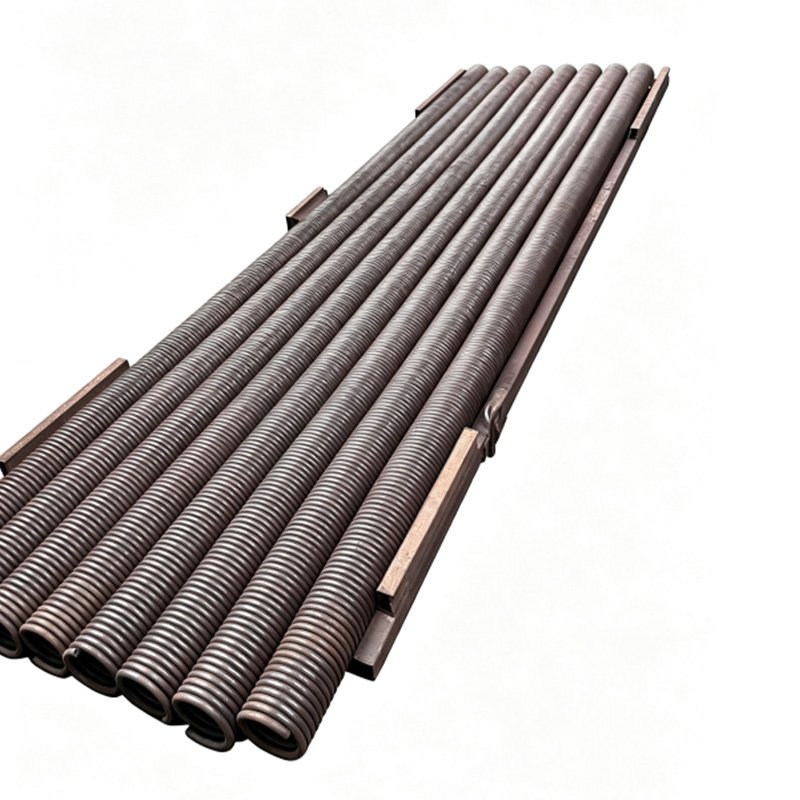

Garage Door Torsion Springs
- Model: KTS01
- Glavanized treatment, strong corrosion resistance
- Spring cones installed, left hand wound&right hand wound
- Wire size:.192,.207,.218,.225,.234, .243, .250, .262, .273, .283, .295(5.0mm ~8.0mm)
- I.D:1-3/4″, 2″, 2-5/8″, 3-3/4″, 5-1/4″, 6″(50mm, 67mm, 95mm, 133.4mm, 152mm)
- Customized length available, DASMA color coding available
- Size stencilling and label tying available
- Model: KTS02
- Electrophoretic treatment, strong corrosion resistance
- Spring cones installed, left hand wound&right hand wound
- Wire size: .192,.207,.218,.225, .234, .243, .250, .262, .273, .283, .295(5.0mm ~8.0mm)
- ID:1-3/4″, 2″, 2-5/8″, 3-3/4″, 5-1/4″, 6″(50mm, 67mm, 95mm, 133.4mm, 152mm)
- Customized length available, DASMA color coding available
- Size stencilling and label tying available
- Model: KTS03
- Powder coating treatment, identified customization powder color available
- Spring cones installed, left hand wound&right hand wound
- Wire size: .192, .207, .218, .225, .234,.243,.250, .262, .273, .283, .295 (5.0mm ~8.0mm)
- I.D: 1-3/4″, 2″, 2-5/8″, 3-3/4″, 5-1/4″, 6″(50mm, 67mm, 95mm, 133.4mm, 152mm)
- Customized length available, DASMA color coding available
- Size stencilling and label tying available
- Model:KTS04
- Glavanized treatment, antirust oil immersed available
- Left hand wound&right hand wound
- Wire size:.192, .207,.218, .225,.234, .243,.250, .262, .273, .283, .295 and above
- I.D: 1-3/4″, 2″, 2-5/8″, 3-3/4″, 5-1/4″, 6″ (50mm, 67mm, 95mm, 133.4mm, 152mm)
- Customized length available, 120″, 144″ and 166″(3048mm, 3658mm, 4216mm)
- Size stencilling and label tying available

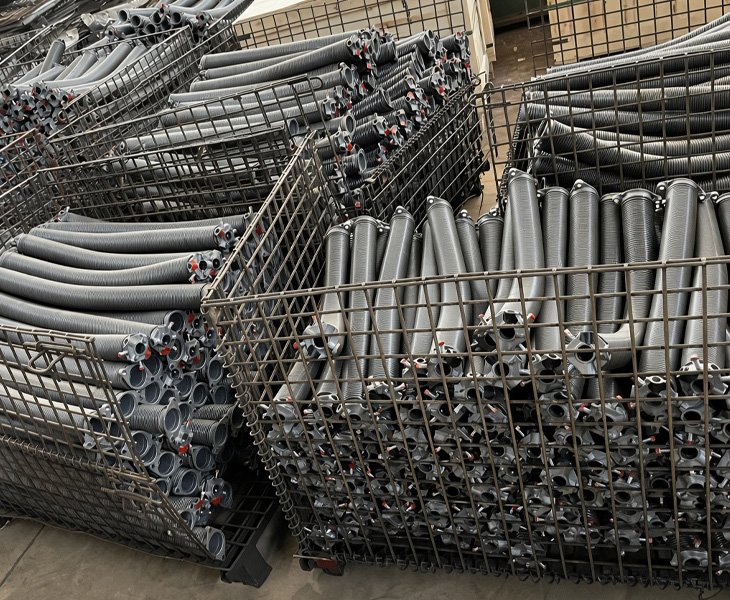

Consistent Counterbalance & Safety
Our garage door torsion springs provide stable lifting force throughout the door’s travel, reducing workload on operators, cables, and hardware. Accurate matching of spring torque to door weight ，this helps ensure smooth, controlled operation and ensures safer daily operation for users.

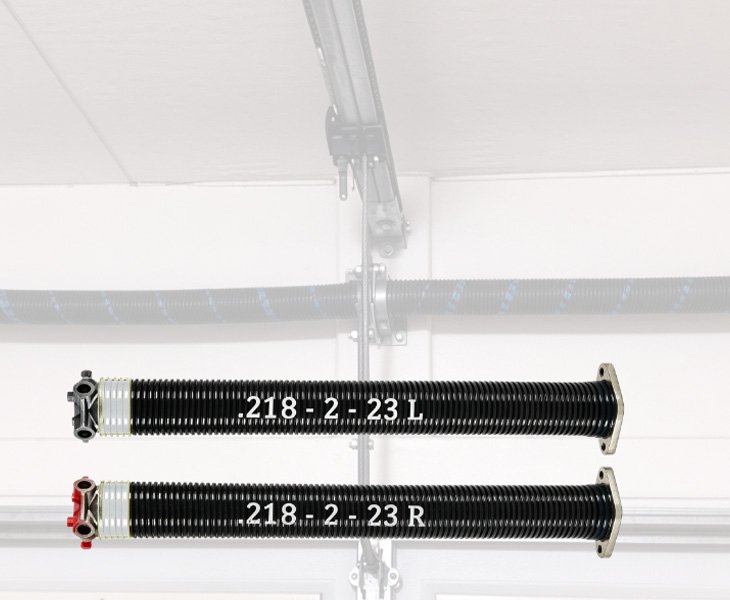

Durable Materials & Long Cycle Life
Our garage door springs are manufactured from high-tensile oil-tempered steel with controlled heat treatment and precise coiling. This construction provides reliable fatigue resistance under repeated opening and closing cycles, supporting both residential and high frequency use commercial environments when correctly selected and installed.
Flexible B2B Customization & Supply
KOP DOOR supports garage door torsion springs with custom wire sizes, inner diameter, free lengths, left & right directions, surface treatments, private labeling, and bulk packaging (Wooden case &Nude packing for container loading).
This means two winding directions of garage door torsion springs. Left-hand wound springs are counter‑clockwise coiled, while right-hand wound springs are clockwise coiled. One left-hand and one right-hand spring are normally used as a matched pair for standard double spring garage doors.
Our torsion springs are manufactured with high-tensile oil-tempered steel wire ,72B,82B(domestic standard). Surface treatment is applied for anti-rust and anti-corrosion performance for long-term outdoor use.
Cycle life depends on frequency of use. Our standard torsion springs offer 10,000-50,000 cycles under normal operating conditions. Heavy-duty options for high-frequency use are also available.
Torsion springs are mounted on a torsion shaft above the door and save energy by torsion to provide balancing force; they are the mainstream solution in the North American and European markets at present. Extension springs are mounted on the tracks on either side of the door and save energy by tension.
We maintain a range of standard sizes for fast delivery and also accept custom dimensions, wire gauges, free lengths, and packaging for bulk or OEM orders. Share your technical requirements and volume expectations for a quotation tailored to B2B supply.
