For the overhead garage door cables, we have galvanized steel cable, stainless steel cable and black coated cable 3 options. Galvanized one is most common for residential installation, stainless steel and black coated ones for the commercial, high moisture or corrosive installation.
We provide garage door cable assemblies for your 7ft and 8ft door installation and bulk cable reels with different diameters 3/32’’, 1/8’’(3mm), 5/32’’(4mm), 3/16’’(5mm) and 1/4’’(6mm). 7×7 and 7×19 structure, left lay and right lay, and custom length can be purchased individually to meet your distribution works.
You can also get our standard torsion and extension garage door cable assemblies with double stops and thimbles pre-installed. Different color tapes and hot-sealed bagged with size labeled will help you pick the right cables from your warehouse more easily.
Garage Door Cables

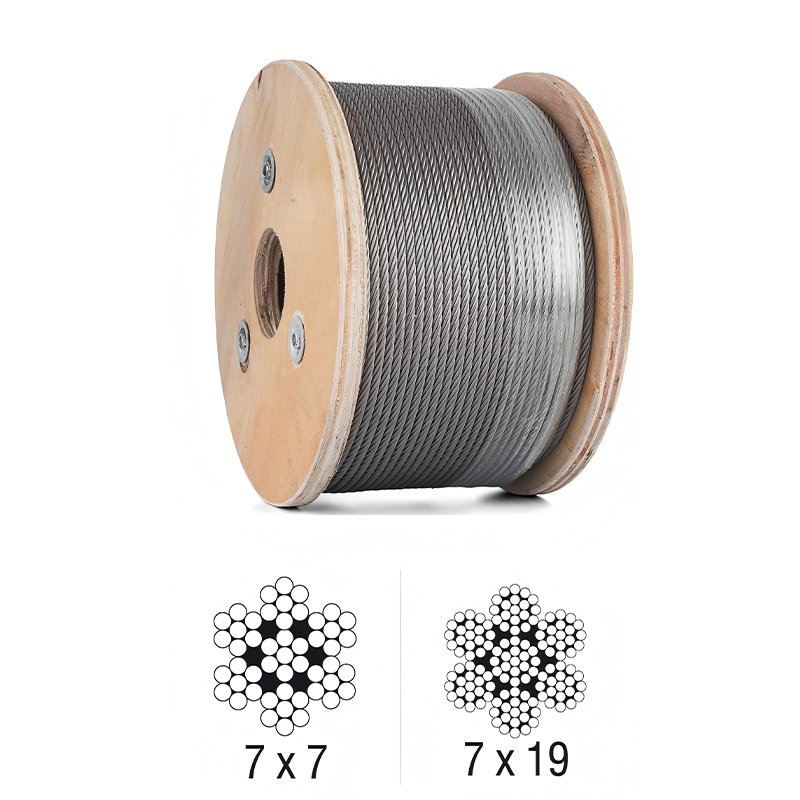

- Reel of Cables
- Size: 3/32”, Type: 7X7, Length: 500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
- Reel of Cables
- Size: 1/8”, Type: 7X7, Length:500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
- Reel of Cables
- Size: 1/8”, Type: 7X19, Length: 500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
- Reel of Cables
- Size: 5/32”, Type: 7X7, Length: 500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
- Reel of Cables
- Size: 5/32”, Type: 7X19, Length: 500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
- Reel of Cables
- Size: 1/4”, Type: 7X19, Length: 500’
- Stainless steel is available
- Color: Black and golden (copper-plated) are available
- Left lay cables are available
Safety Premium with Maximum Breaking Strength
KOP DOOR puts the safety in the 1st position, great quality raw material makes our garage door cables have the standard, even better breaking strength for our overhead door industry.
The max. break strength for our standard galvanized cables are:
- 7×7 cable with 1/8’’(3mm) is 1936lbs(880kg)
- 7×19 cable with 1/8’’(3mm) is 2200lbs(1000kg)
- 7×19 cable with 5/32’’(4mm) is 3234lbs(1470kg)
- 7×19 cable with 3/16’’(5mm) is 4130lbs(1877kg)

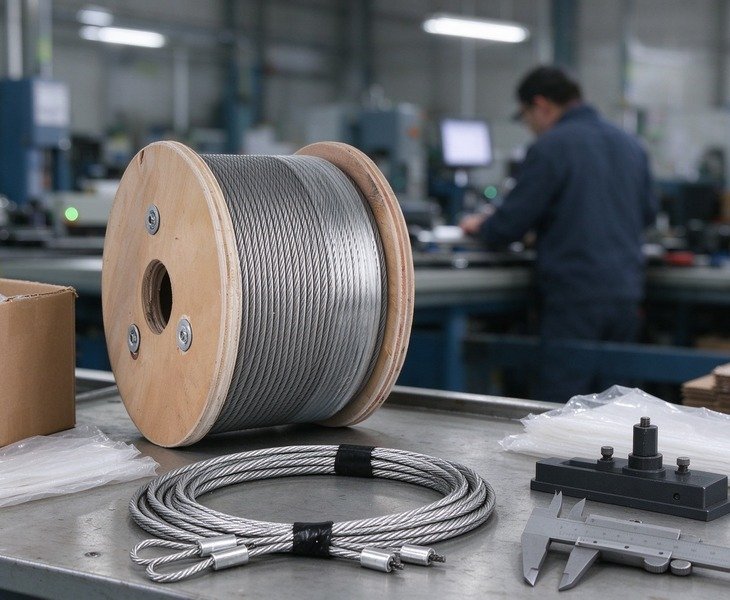

Flexible Cable Assembled and Packaging
Maybe you have different and special needs for your garage door cables, not only can we offer thicker cable diameter, 7×19 structure, stainless steel material, customized length, standard garage door cable for 7ft and 8ft door with extra double stops and thimbles, but we will provide bag sealed package with size label on the cables for your garage door hardware parts distribution.

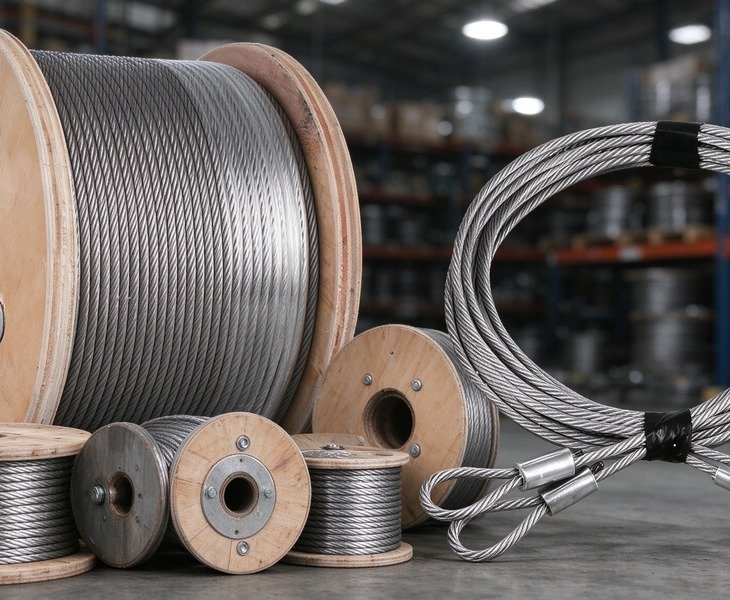

Precision Made for Garage Door Cables and Assembly
Do you have the issues of cable length shorter, bottom bracket doesn’t work well as aluminum sleeves pumped bigger? Our digital manufacturing equipment for garage door cables line will solve your problems. Every KOP DOOR garage door cables are made by our automatic device, we can control the cutting length and stamped the aluminum sleeves precisely without any after-sale problems.
Yes, we can make a specific size label on the cables for you.
We don’t have the minimum order quantity of the cable reels, 100ft or 100meters above are all available for us.
You can hit us up at any time within 5 years if our cables have the issues during normal using, we will replace the new FREE one for your business.
