KOP DOOR’s garage door cones are made by the same high quality die-cast aluminium as our cable drums. You can get multiple sizes spring cones from us, 1-3/4’’, 2’’, 2-5/8’’, 3-3/4’’, 5-1/4’’ and 6’’ with right wound and left wound, also for the commercial door installation, we also have bore diameter 1’’ and 1-1/4’’ shaft options.
Our garage door cones are used with garage door type of torsion springs meeting ASTM A229 Class II or galvanized wire and free of coating that can reduce friction between spring plugs and torsion springs. The thickness of our cones are stronger enough in the winding bar hole and spring wire threads to avoid any broken during installation.
Winding the torsion springs is very dangerous, so our garage door cones should be installed under the IDA and DASMA standard. Never anchor a set screw directly into the keyway of the shaft. And as our garage door cones are universal threads, thet can be black or red color coded for your convenience.
Garage Door Cones
- 1-3/4″ Spring Cones
- Universal for LH wound and RH wound springs
- Stationary and winding cones per pair
- Max. wire size: .295

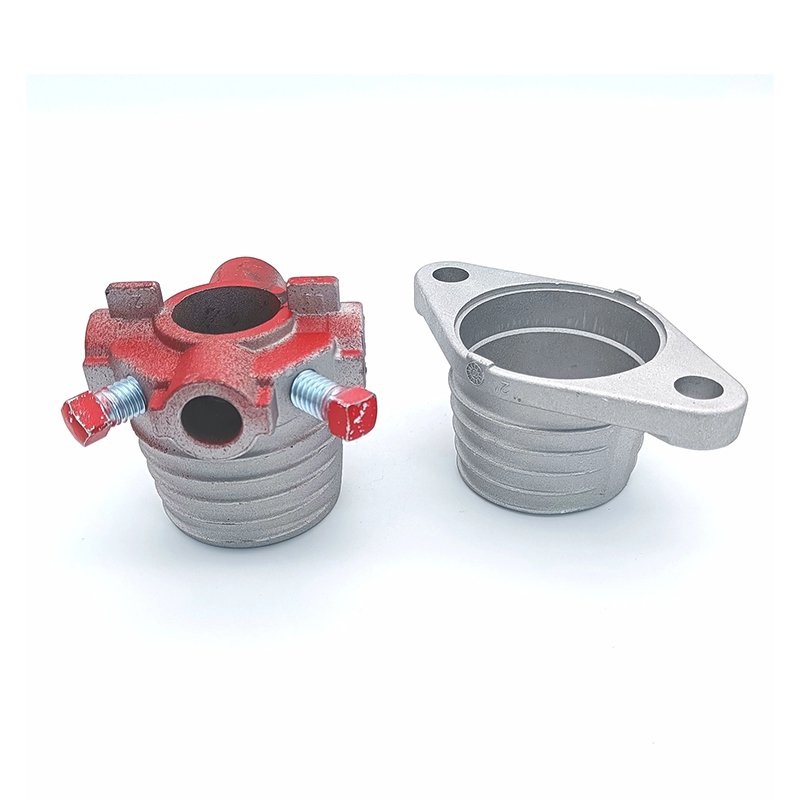

- 2” Spring Cones
- Universal for LH wound and RH wound springs
- Stationary and winding cone per pair
- Max. wire size:.306
- 2-5/8″ Spring Cones
- Universal for LH wound and RH wound springs
- Stationary and winding cone per pair
- Max. wire size:.331

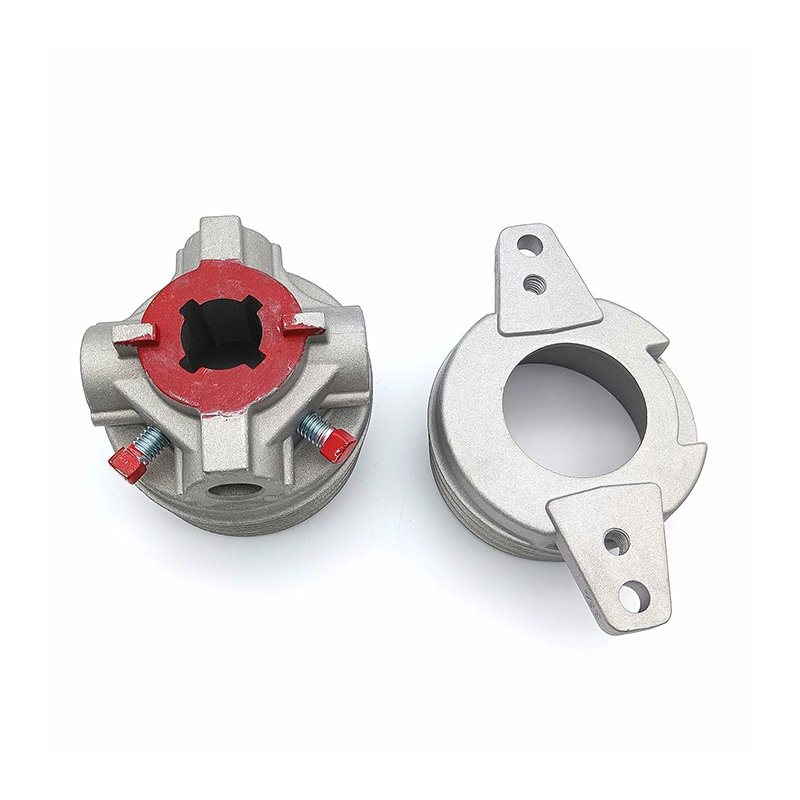

- 3-3/4″ Spring Cones
- for LH wound and RH wound springs
- Stationary and winding cone per pair
- Max. wire size:.4062
- 5-1/4″ Spring Cones
- For LH wound and RH wound springs
- Stationary and winding cone per pair
- Max. wire size: .4375

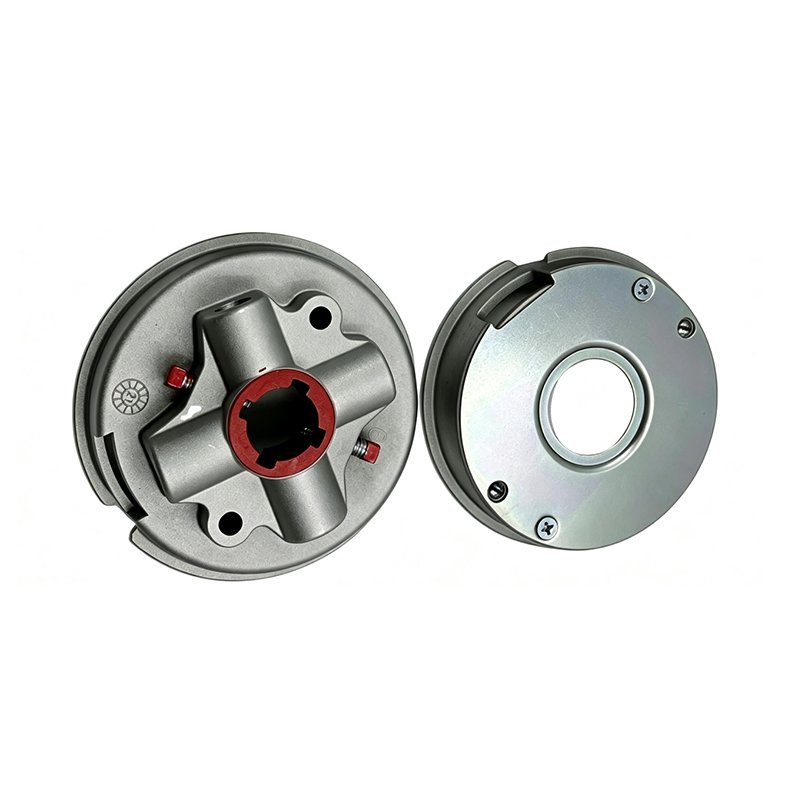

- 6″ Spring Cones
- 1″ and 1-1/4″ Bore available
- Stationary and winding cones per pair
- Max. wire size: .4375
High Quality of Pre-Installed Screws
2 square galvanized set screws with red head on our garage door cones can load Max. 300lb-in.(34Nm). We outsourced the high physical specification screws from our partner for decades, so we are confident with our cones even small screws quality control. Automatic installed the screws for the fitting in our automatic line makes you will get our spring cones all the same with great quality.

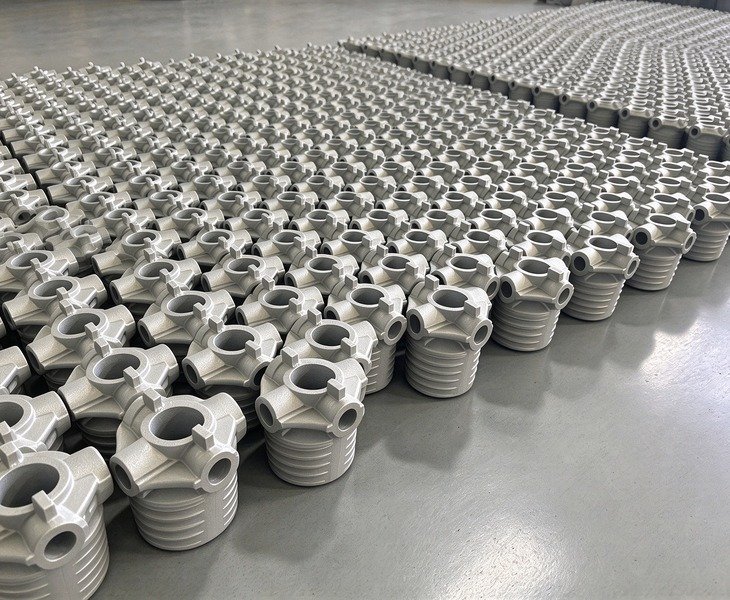

Manual Installation Tools Promote
We know your purchasing of the garage door cones maybe used for your long torsion springs, and the spring fitting will be installed on the torsion springs at your warehouse. So that you can have a suitable tool to assemble the parts, we can offer a free manual tool to you when the ordering quantity of spring cone reach to our required. And our engineers will also offer the guide how to install the garage door cones properly, to avoid any broken with a qualified pre-cut torsion springs.
Customized for Your Identified Garage Door Business
Our torsion spring cones can be powder coated different colors to meet your company factors, marking characters on the surface of garage door cones and also the customized package for the cones are all available for your door business. Meanwhile, for the duplex torsion spring system, we also have the different solutions for your commercial door installation.
We have coated black and red colors for our distributors, any other options are all workable for us.
Yes, we can offer both types to you.
We don’t have the limitation of cone quantity, but if you order large quantity we can ship free tool for you.
